The all-new Trail Wide is your go-to wheelset no matter the conditions. Optimised to still take the A-lines on the descents and not hold you back on the climbs.
Mullet (29 F / 27.5 R) | 30mm Wide Int. | 1800G
The Purpose
After almost three years of unwavering service on the toughest trails, with numerous awards and recognitions along the way, the restless design team at HUNT saw an opportunity to update the Trail Wide wheelset to meet the evolving demands of today’s riders.
Starting with what we learnt around profile optimisation from the burlier Enduro Wide V2 project, we set out to improve upon its lighter sibling, not an easy task with an Editor’s Choice-winning wheelset.
Combining the all-new 30mm internal rim profile, with new hubs and spoke configurations, results in a wheel that keeps the outward appearance of it's predecessor yet provide 20% more impact resistance.
Designed as the answer to your trail centre weekends, back country epics or days spent smashing through your local woods - a wheelset that can do it all and leave you with a big grin.
The Purpose
After almost three years of unwavering service on the toughest trails, with numerous awards and recognitions along the way, the restless design team at HUNT saw an opportunity to update the Trail Wide wheelset to meet the evolving demands of today’s riders.
Starting with what we learnt around profile optimisation from the burlier Enduro Wide V2 project, we set out to improve upon its lighter sibling, not an easy task with an Editor’s Choice-winning wheelset.
Combining the all-new 30mm internal rim profile, with new hubs and spoke configurations, results in a wheel that keeps the outward appearance of it's predecessor yet provide 20% more impact resistance.
Designed as the answer to your trail centre weekends, back country epics or days spent smashing through your local woods - a wheelset that can do it all and leave you with a big grin.
Specs Overview
We see wheels as a system, not a single component
- Rims | 6069 T6 (490 MPa, + 69% Ultimate Tensile Strength over 6061-T6) welded construction, 30mm wide (internal), work-hardened shot-peened finish.
- Hubs | 5° RapidEngage, boost (110/148 spacing hubs available, large double sealed cartridge bearings. Rock Shox Torque Caps for Boost hubs and QR adapters for hubs are available.
- Spokes | 28h Spoke Count, Triple Butted (2.2-1.6-2.0) PSR reinforced Pillar Spokes.
- Tires | Optimized for 2.3"-2.5" tires set up Tubeless, but also work very well with 2.25"-2.8". Also great with standard tires and tubes.
- Axles | 7075-T6 axles for strength and stiffness, reduced flex in the hub also helps to increase bearing life.
- Included | Tubeless tape, valve & spokes.
- Weight | 1800g
The Experts' View
More Tech
Rims
- 30mm internal width ideal for 2.3"-2.4" tire widths, but also work very well with 2.25"-2.8".
- 6069-T6 heat-treated aluminium alloy (+69% tensile strength vs 6061-T6).
- Tubeless-ready – designed to work best with tubeless tires. Tubeless-rim tape and valves included.
- H-lock bead-seat up-kicks for easy and secure tubeless installation.
- Matt black work-hardened shot-peened finish with laser etched graphics for superior durability.
Spokes
- J-bend cold drawn.
- 28F/28R spoke count.
- Pillar Spokes made from Sandvik T302 (18/10) stainless steel.
- Triple butted 2.0-1.6-2.0 (then 2.2 at the head for the patented Pillar Spoke Re-enforcement).
- Black stainless treatment.
Nipples
- Hard-anodized alloy for weight reduction and strength.
- Square body for external adjustment and hex head for easy internal adjustment/tensioning. Hex/square spoke key included.
- Long 14mm thread for durability.
- 14 gauge.
- Black finish
Tires Info
- Maximum tire pressure for this rim: up to 2.5" do not exceed 40psi. 2.6 - 3.0" - do not exceed 30psi. Please do not exceed the maximum pressure stated on your tire.
- Designed to work perfectly with tubeless and non-tubeless tires.
- Suitable tubeless MTB tire combinations from Schwalbe and Maxxis are available to be fitted to your Hunt TrailWide Wheels.
Axle Size
- Boost - 148x12mm (Rear) with 110x15mm (Front). Rock Shox Torque Caps available - just add a comment in the notes section on the cart page.
- Standard - 142x12 (Rear) with 100x15mm (Front). QR adapters available - just complete the simple form after checkout.
- SRAM/Shimano 8/9/10/11 speed and SRAM XD compatible.
Front Hub
- Forged and CNC’d 6061-T6 heat treated aluminium alloy Hub body
- 7075-T6 aluminium alloy axles.
- Oversized 7075-T6 aluminium alloy axles.
- 110x15mm or 100mm spacing. Rock Shox Torque Caps for Boost and QR options available - just add a comment in the notes section on the cart page.
- Polished anodized black finish with laser graphics.
- 6 bolt disc mount

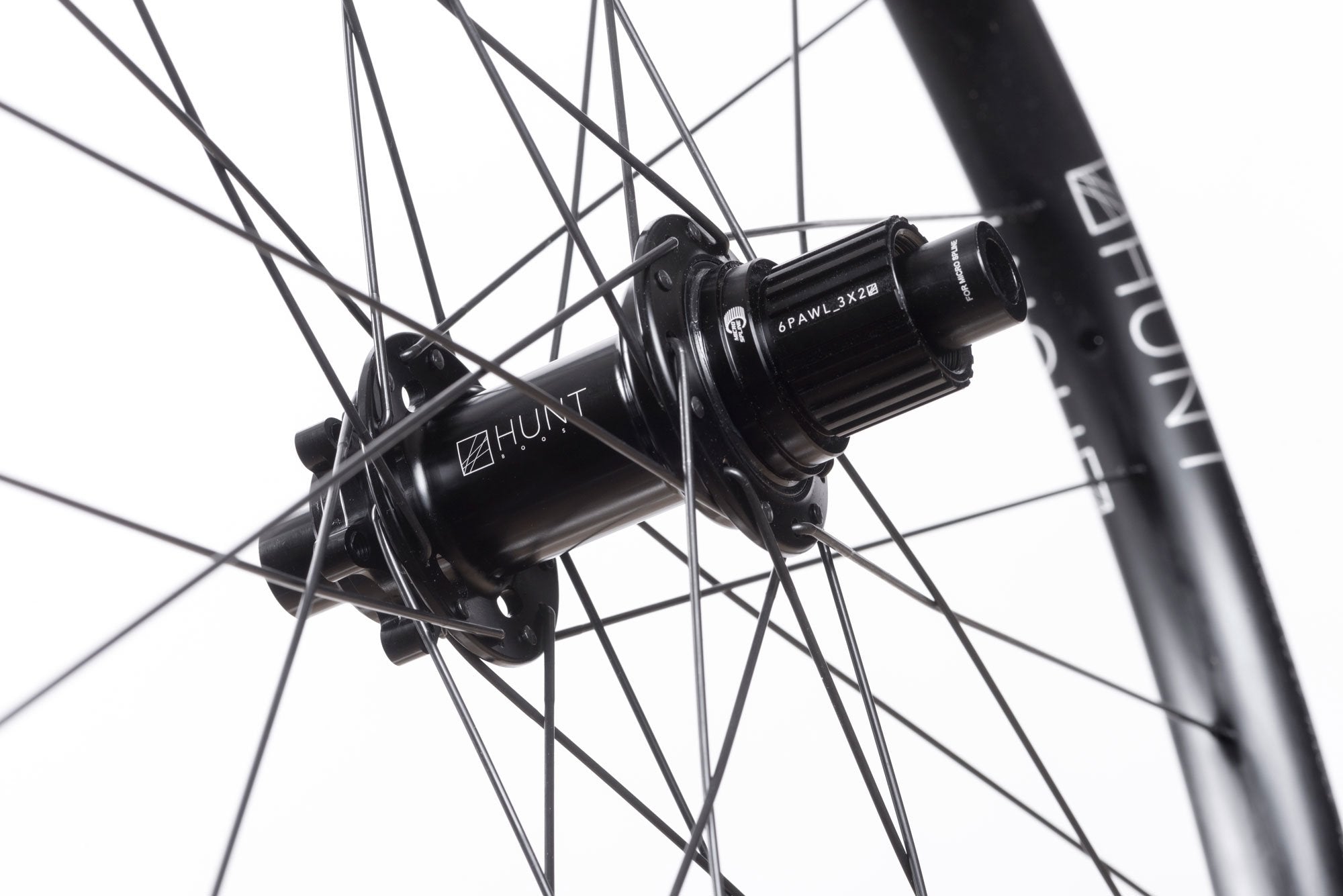

Rear Hub
- Extruded and CNC machined 7075-T6 heat-treated aluminium alloy hub body.
- 148x12mm, 157x12mm or 142x12mm spacing.
- H_CERAMIK freehub body reinforcement coating provides excellent durability and protects against cassette sprocket damage to the freehub often seen on standard alloy freehub bodies.
- 3x2 pawl, 36 tooth RapidEngage freehub, with an engagement angle of just 5 degrees
- 9/10/11 speed Shimano/SRAM compatible freehub and SRAM XD Driver version available.
- Oversized 7075-T6 heat treated aluminium axles.
- Polished anodized black finish with laser graphics.
- 6 bolt disc mount/center-lock option available
- Polished anodized black finish with laser graphics.
Bearings
- Precision sealed cartridge replaceable units.
- Large diameter ball bearings for extra durability.
- Dual full-contact rubber seals.
Warranty, Support and Weight Limits
A full 3 years from purchase date warranty is offered to the original purchaser only on all Hunt bike wheels against material or workmanship defects, please click here to read full details.
All HUNT wheels models have to pass our harsh rolling-drum fatigue tests for rider weight limits, please see here for more details. 264lbs is the upper recommended rider weight limit for these wheels. Please include the weight of any luggage in your total rider weight when choosing the correct wheels. If a rider is over 240lbs then an experienced bike mechanic should check the wheel regularly and it is advisable to use tires at max 40psi as this will reduce the fatigue on the wheelset.
Crash replacement 35% off plus All HUNT wheels models have been designed to meet the needs of the type of riding they are intended for. We are cyclists ourselves and do of course go above and beyond to offer excellent service if you ever do experience any issues. We carry full spares at very reasonable prices and offer complete support.
60 Day Ride & Return Period. We are certain you'll be impressed by the acceleration, low-weight, speed and durability of our wheels. We are cyclists and as such strive to offer class leading service and support. Buy with confidence, if for any reason you wish to return the wheels for a full refund of your order you can do so up to a full 60 days after you receive them whether they have been ridden or not. Please note we cannot offer refunds on wheels that have suffered from crash damage but do offer a crash replacement discount.
Tubeless Tire Options
We can supply tubeless tires (including sealant) with your wheels. The wheels are also designed to work excellently with clincher tires and tubes. See recommended tire options below.
Maximum tire pressure for this rim: up to 2.5" do not exceed 40psi. 2.6 - 3.0" - do not exceed 30psi. Please do not exceed the maximum pressure stated on your tire.
These are only some of the options you can purchase with fitted on your wheels. To see the full range, click here
 | Schwalbe Hans Dampf 2.35" Snake Skin Soft Front / RearThe Hans Dampf is one of the most balanced tires out there. Providing superior control on rough terrain as well as amazing grip in flowy singletrack, the Hans Dampf is the best kind of all-rounder. The high-volume casing offers maximum braking traction and cornering grip for when the trail becomes aggressive. But when gravity stops working its magic, the Hans Dampf will not leave you behind. The continuous tread pattern is closely spaced meaning that this tire tracks well and has a lower rolling resistance over more aggressive options. |
Reviews
Bike Magazine and Website Experts' Views
 | Bike Perfect 4.5/5 Review"Same excellent ride quality, big tire support and an increase in rim toughness make Hunt’s Trail Wide V2 an even better-value wheel proposition" |
 | 4.5/5 Review"The Hunt Trail Wide 29 wheelset is a well-designed, well-made, and well-priced wheelset." |
| 10/10 REVIEW"Lighter than most of the carbon wheels on test, the Trail Wides feel fast on the trail, and change direction rapidly. They also spin well with smooth, quality bearings and accelerate crisply under power. The rear wheel's super-fast engagement reacts as soon as you turn on the power at the crank, which is a real advantage for technical, stop-start climbing as well." See full review in the images above. |
 | 4.5/5 REVIEW"These wheels area a brilliant balance of smooth speed, accuracy and userful toughness, outriding many carbon competitors at a price that's a steal." See full review in the images above. |
 | "Hit the sweet spot of performance and price"."Hunt Trail Wide is a very good wheelset that is strong, light and durable. They’re ideal for hitting up trail centers every weekend, backcountry adventures into the unknown, or a week of pure descending in the mountains or bike park" |
 | Is The Hunt Trail Wide The Best Wheelset You Can Buy Under £400?"With the Trail Wide being upgraded to a tougher alloy, and with only a slight increase in weight I believe that they are going to prove to be one of the best sub £400 wheelsets on the market for some time to come. They look classy, the quality is spot on and they keep rolling even when they’ve been battered." |
 | First Look"A family of three new premium alloy off-road wheels – the EnduroWide, TrailWide & XCWide – ready to hit every kind of trail that awaits…" |
In the Box
Contents
- HUNT Black Shield PET high tensile strength tubeless tape fitted to wheels.
- Cassette spacer for 8/9/10 speed
- Tubeless Valves
- Quality control card signed by your wheel builder
