The last word in seriously fast riding across tough gravel. Hookless 700C rims optimised for wide tires, to hit the rough stuff with confidence.
35 DEEP | 31 WIDE EXT | 25 WIDE INT | 1465G
The Purpose
Introducing the Carbon Gravel X-Wide: Carry speed over the seriously rough stuff with confidence on these super-wide 700C rims optimised for wide tires. The 35mm depth was selected for stiffness and burly strength, knowing that you’ll likely be spending plenty of miles off-road.
Featuring the same 5 degree RapidEngage 6-pawl hub as our 30 Carbon Gravel Disc (inclusive of H_CERAMIK freehub) this wheelset offers riders a more burly option for hardcore gravel/drop-bar off-road riding and racing! Benefitting further from a 28-spoke count both front and rear (for up to 120kg riders), the result is a strong gravel/bike-packing wheelset for the heaviest of duties! Hit the trails, HARD!

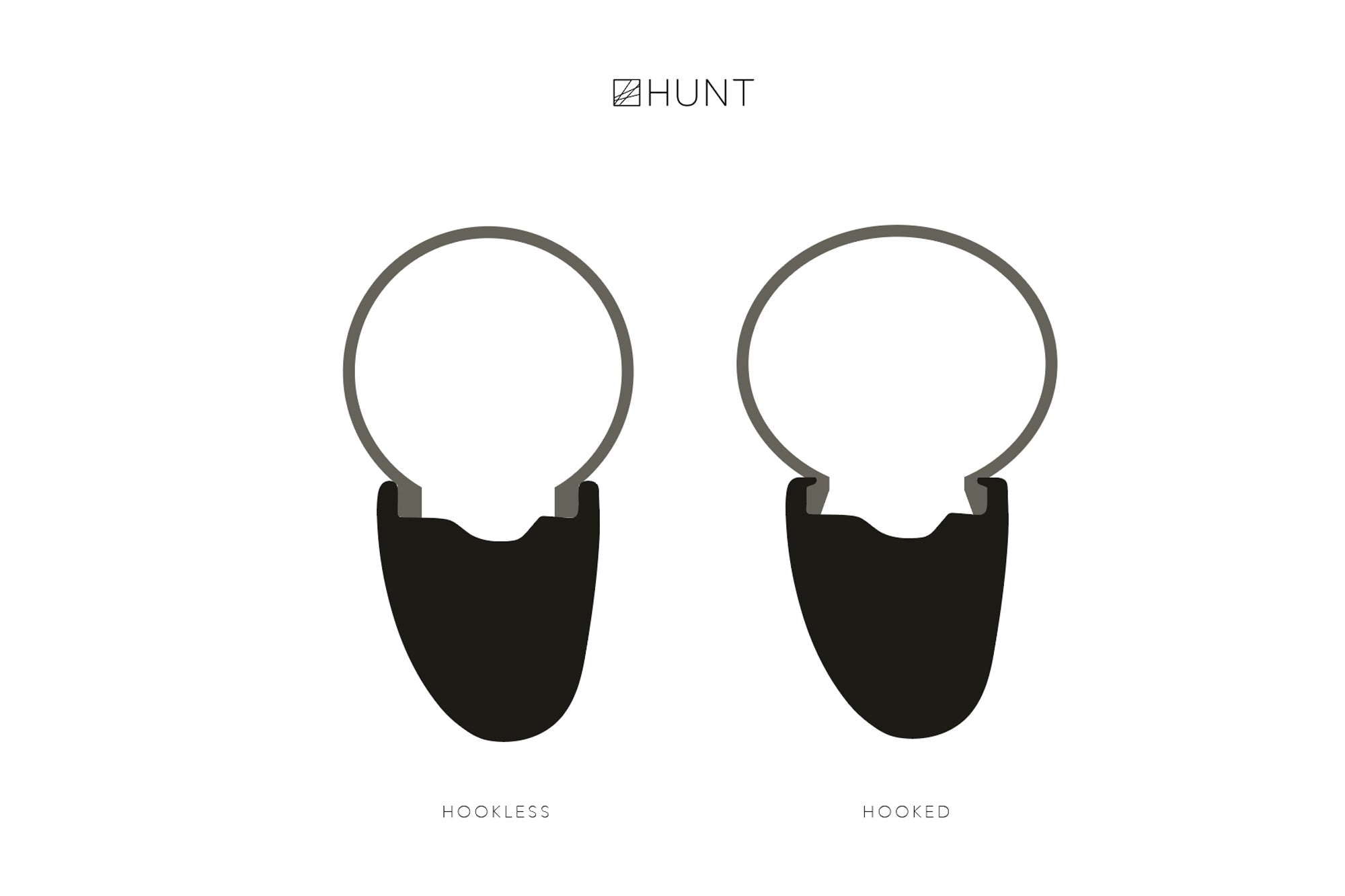

For our detailed explainer outlining the differences and characteristics of hookless and hooked .
The Purpose
Introducing the Carbon Gravel X-Wide Hookless: Carry speed over the seriously rough stuff with confidence on these super-wide 700C rims optimised for wide tires. The 35mm depth was selected for stiffness and burly strength, knowing that you’ll likely be spending plenty of miles off-road.
Featuring the same 5 degree RapidEngage 6-pawl hub as our 30 Carbon Gravel Disc (inclusive of H_CERAMIK freehub) this wheelset offers riders a more burly option for hardcore gravel/drop-bar off-road riding and racing! Benefitting further from a 28-spoke count both front and rear (for up to 120kg riders), the result is a strong gravel/bike-packing wheelset for the heaviest of duties! Hit the trails, HARD!
For our detailed explainer outlining the differences and characteristics of hookless and hooked .
Key Features
Gravel Riding Supremacy
- Rims | 31mm external, 25mm internal. Unidirectional T24/30, with 3K weave reinforced spoke holes. Hookless .
- Tires | Tubeless-ready for lower weight & rolling resistance, featuring H_LOCK bead-seat for easy and secure tubeless installation. Hookless rims require the use of tubeless tires. (Please always refer to your tires manufacturer's guidelines on pressure, rim width, and hookless compatibility).
- Hubs | HUNT 4 Season Disc J-bend spoke hubs with extra bearing shielding. 5 degree RapidEngage 6-pawl freehub, with H_CERAMIK coating for enhanced durability. Centre-lock disc mount.
- Spokes | Pillar PSR reinforced spokes with Black for increased wear and corrosion resistance.
- Axles | Easily adaptable & we fit them for you. Fit all current axle sizes and are easy to change; (Front - QR, 12mm, 15mm) (Rear - QR, 12x142, 12x135, 10x135).
- Weight | 1465g
Please note: If you require a 6 bolt adaptor you can purchase separately
The Experts' View
Full Specs
Rims
- Hookless, tubeless-ready asymmetric profile. (Click here to find out more about hookless rim technology).
- H_LOCK bead-seat up-kicks for easy and secure tubeless installation
- Unidirectional T24/30 carbon fibre, with 3K weave re-enforced spoke holes
- 31mm external and 25mm internal width
- 35mm depth
- Matt black base finished with matt white contrasting graphics.
Spokes
- 24 front and 28 rear, laced 2-cross.
- Aero Butted 2.0-2.2/0.95-2.0 then PSR section is 2.2.
- J-Bend for ease of replacement.
- Cold drawn from high grade T302 (18/10) stainless steel wire by Sandvik Sweden
- Patented Pillar Spoke Re-enforcement, butted again just before the spoke head providing more durability in high stress area.
- Black stainless
Nipples
- Alloy square body for external adjustment and square head for easy internal adjustment/tensioning.
- 16mm length with washer for a strong connection to the spoke added durability.
- 14 gauge.
- Black anodized finish.
Tires Info
- Maximum tire pressure for this rim is 5 bar / 72.5psi. Please do not exceed this pressure or the maximum pressure stated on your tire, whichever is lowest.
- Suitable for tires from 30c+ wide (check your tire manufacturer's recommendations for rim width compatibility).
- Suitable tubeless gravel and CX tires are available from a huge range of companies, including Schwalbe, Panaracer, Maxxis and many more.
Axle Size
- These wheels are available with all existing disc brake road bike axle adapter sizes. All our axle adapters are easy to swap but we'll fit the adapters your bike needs to save you the work. After your order checkout is completed a simple form will show, as well as being sent to you in your confirmation email. The form allows you to select the axle size your bike needs, don't worry it also includes the option to tell us your bike model and we will find out and then fit the correct axles, plus we're happy to change them later at our cost if you don't quite get it right. Please note; this form is shown after you have completed your order. Please click on the Front Hub and Rear Hub tabs to see which sizes are available.
Front Hub
- We fit the axles you need, just complete the simple form shown after checkout:
- All existing road/CX disc front axle standards are available including:
- Quick Release (Quick release skewers included)
- 12mm Bolt Thru
- 15mm Bolt Thru
- All axle adapters are also available separately.
- HUNT 4Season Disc designed for 4Season use with extra bearing shielding and sealing.
- Forged and CNC’d 6061-T6 heat treated aluminum alloy body.
- 7075-T6 aluminum alloy axles.
- Centre-lock disc mount. If you require a 6 bolt adaptor you can purchase separately here.
- Polished anodized black finish with laser graphics.
Rear Hub
- We fit the axles you need, just complete the simple form shown after checkout.
- All existing road/CX disc rear axle standards are available including:
- Quick Release (Quick release skewers included)
- 12x142 Bolt Thru
- 12x135 Bolt Thru (uncommon)
- 10x135 Bolt Thru (uncommon)
- All axle adapters are also available separately.
- 7075-T6 heat-treated aluminum alloy freehub body.
- H_CERAMIK freehub body reinforcement coating provides excellent durability and protects against cassette sprocket damage to the freehub often seen on standard alloy freehub bodies.
- 6 pawl, 28 tooth RapidEngage freehub, with an engagement angle of just 5 degrees
- All freehub standards accounted for, including:
- Shimano/SRAM
- Campagnolo
- SRAM XD Driver
- SRAM XDR Driver
- Hunt Race Season Disc straight-pull super-light alloy.
- Forged and CNC’d 6061-T6 heat treated aluminum alloy body.
- 7075-T6 aluminum alloy axles.
- Centre-lock disc mount. If you require a 6 bolt adaptor you can purchase separately here
- Polished anodized black finish with laser graphics.
Bearings
- Super smooth precision bearings with proprietary waterproof grease specially selected for even the worst weather.
- Sealed cartridge replaceable units.
- Dual full-contact seals.
Warranty, HUNT Rolling Road Tests & Weight Limits
A full 3 years from purchase date warranty is offered to the original purchaser only on all Hunt bike wheels against material or workmanship defects, please click here to read full details.
All HUNT wheels models have to pass our harsh cobbled-rolling-road tests for rider weight limits, please see here for more details. 265lbs is the upper recommended rider weight limit for these wheels. Please include the weight of any luggage in your total rider weight when choosing the correct wheels. If a rider is over 240lbs then an experienced bike mechanic should check the wheel regularly. We are cyclists ourselves and do of course go above and beyond to offer excellent service if you ever do experience any issues. We carry full spares at very reasonable prices and offer complete support.
60 Day Ride & Return Period. We are certain you'll be impressed by the acceleration, low-weight, speed and durability of our wheels. We are cyclists and as such strive to offer class leading service and support. Buy with confidence, if for any reason you wish to return the wheels for a full refund of your order you can do so up to a full 60 days after you receive them whether they have been ridden or not. Please note we cannot offer refunds on wheels that have suffered from crash damage but do offer a crash replacement discount.
Tubeless Tire Options
These are some of the options you can purchase with your wheels. To see the full range, click here
 | Schwalbe G-One Allround Tubeless Tyres - 35/38mmThe Schwalbe Tubeless tires consistently win plaudits from journalists and customers alike. We have been testing them for a long time and have been very impressed. The G-One's are Schwalbe's brand new gravel tires, designed to offer a low rolling resistance yet offer plenty of grip on gravel and dirt tracks. |
 | Schwalbe G-One Bite 40mm Tubeless Gravel TiresThe G-One Bite feels good on road, but off-road is where it shows its real strength. The Bite version is made for more off-road use than its stablemates. The open tread and strong outer blocks give stability when cornering and great control in the toughest of gravel terrains. |
Reviews
Bike Magazine and Website Experts' Views
| Singletracks Review"You don’t have to shy away from riding rocks or popping off of water bars. The X-Wides soak up the hits and maintain confidence riding through patches of chunky trail or jarring brake bumps on gravel roads. |
 | 5 STAR REVIEW"Sound build quality, superb ride quality, incredibly well specced out and at a fraction of the cost of many other carbon gravel wheels" |
 | 5/5 STAR REVIEW"Tough, adaptable and wide as you want, these are an excellent choice for getting seriously gravelly" |
