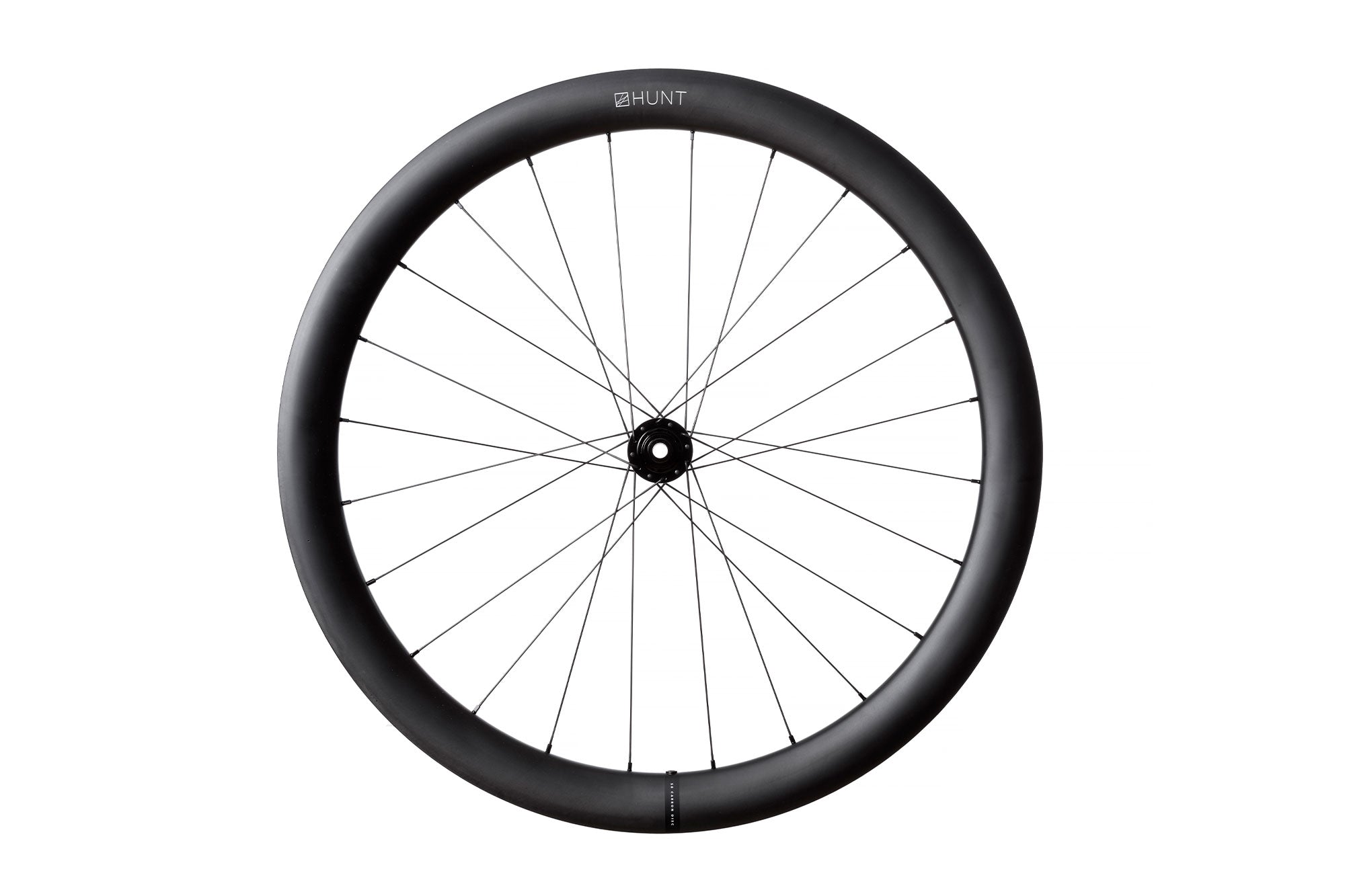

AN EVOLUTION OF THE WIND-CHEATING, GIRO STAGE-WINNING ORIGINAL - ULTRA FAST AND ULTRA VERSATILE.
50 Deep | 30 Wide Ext | 22 Wide Int | 1464g
The Purpose
Building on the Grand Tour Stage-winning performance of the original 50 Carbon Aero Disc, this updated wheelset features a wider, all-road ready rim profile that optimizes aerodynamic gains for modern tires. Featuring a new ratchet hub system, the HUNT 50 Carbon Disc was built for speed and versatility, ready to upgrade your ride for any crit, road or gravel race out the box. To capitalize on the benefits of a modern disc brake equipped bike, you need a wheelset that delivers proven aero benefits, wide tubeless tire compatibility, quick acceleration, and rapid hub engagement.
The 50mm deep U-shape carbon rim profile offers measurable aero benefits across a wide range of wind yaw angles, while the 22mm-wide internal rim bed opens out your tire profile to provide exceptional vibration reduction, improved cornering traction and low rolling-resistance. Proven in wind tunnel, the 50 Carbon Disc offers an 8 watt aerodynamic advantage using MWAD compared to a standard, 25mm-deep alloy wheelset, and gives up only 4 watts compared to the fastest wheels in the segment, such as our SUB50 Limitless Aero Disc and ENVE 4.5 SES, when tested with 28mm tires. Optimized for 25-35mm tires (ETRTO compatible with road and gravel tires ranging from 25mm to 55mm) to keep you at the front of the group, whether on a closed criterium course or a scenic gravel loop.
The HUNT team have paired the wide hooked rim with new H_Ratchet 36T SGL hubs, offering a rapid 10-degree engagement angle, in a reliable, easy-to-service and long-lasting single-sided ratchet drive system. Increased engagement surface area improves power transfer and longevity of the hubs, while using less material compared to a spring-and-pawl system, resulting in a light but robust hub system designed and tested to cope with the increased torque of 1x drivetrains. Hand-built with top-of-the-range Pillar PSR triple butted J-bend spokes and precision sealed cartridge bearings, this wheelset is ready to help you pick up the pace.
The Purpose
Building on the Grand Tour Stage-winning performance of the original 50 Carbon Aero Disc, this updated wheelset features a wider, all-road ready rim profile that optimizes aerodynamic gains for modern tires. Featuring a new ratchet hub system, the HUNT 50 Carbon Disc was built for speed and versatility, ready to upgrade your ride for any crit, road or gravel race out the box. To capitalize on the benefits of a modern disc brake equipped bike, you need a wheelset that delivers proven aero benefits, wide tubeless tire compatibility, quick acceleration, and rapid hub engagement.
The 50mm deep U-shape carbon rim profile offers measurable aero benefits across a wide range of wind yaw angles, while the 22mm-wide internal rim bed opens out your tire profile to provide exceptional vibration reduction, improved cornering traction and low rolling-resistance. Proven in wind tunnel, the 50 Carbon Disc offers an 8 watt aerodynamic advantage using MWAD compared to a standard, 25mm-deep alloy wheelset, and gives up only 4 watts compared to the fastest wheels in the segment, such as our SUB50 Limitless Aero Disc and ENVE 4.5 SES, when tested with 28mm tires. Optimized for 25-35mm tires (ETRTO compatible with road and gravel tires ranging from 25mm to 55mm) to keep you at the front of the group, whether on a closed criterium course or a scenic gravel loop.
The HUNT team have paired the wide hooked rim with new H_Ratchet 36T SGL hubs, offering a rapid 10-degree engagement angle, in a reliable, easy-to-service and long-lasting single-sided ratchet drive system. Increased engagement surface area improves power transfer and longevity of the hubs, while using less material compared to a spring-and-pawl system, resulting in a light but robust hub system designed and tested to cope with the increased torque of 1x drivetrains. Hand-built with top-of-the-range Pillar PSR triple butted J-bend spokes and precision sealed cartridge bearings, this wheelset is ready to help you pick up the pace.
Key Features
AERO-OPTIMISED RIM PROFILE TO SUIT EVERY RACING NEED.
- Rims | 30mm external rim profile with 22mm-wide internal rim bed with hooks.
- Tires | Optimized for 25-35mm tires, and ETRTO compatible with 25mm-50mm tires. Tubeless-ready for lower weight and rolling resistance. Also work excellently with clincher tires and tubes.
- Hubs | HUNT H_Ratchet 36T SGL hub system with J-bend spoke interface and extra bearing shielding. 10-degree engagement angle with 36 tooth ratchet internals. H_CERAMIK freehub body coating for enhanced durability and protection against cassette gouging. Center-lock disc mount. Please note: If you require a 6 bolt adaptor you can purchase separately
- Bearings | Precision stainless steel cartridge bearings with proprietary waterproof grease specially selected for the worst weather.
- Spokes | Hand-built with top-of-the-range, reinforced Pillar PSR triple butted J-bend spokes for durability.
- Axles | Easily adaptable & we fit them for you. Fit all current axle sizes and are easy to change. .
- Hand-built | All of our wheels are built and finished by hand, inclusive of a full quality control inspection.
- Included | Tubeless tape & valves, spare spokes, nipple washers, axle adapters (please fill in the simple form after checkout to select your required size), and lock rings.
- Weight | 1464g
Full Specs
Rims
- Hooked tubeless-ready rim profile.
- Full carbon fiber construction with re-enforced spoke holes.
- 30mm external and 22mm internal width.
- 50mm depth.
- UD finish with matte white contrasting graphics.
Spokes
- 24 Front & 24 Rear spokes with a 2-Cross lacing pattern.
- J-bend cold drawn.
- Made from high grade T302 (18/10) stainless steel wire by Sandvik Sweden.
- Front Triple butted 2.0-1.5-2.0 (then 2.2 at the head for the patented Pillar Spoke Re-enforcement).
- Rear Triple butted 2.0-1.6-2.0 (then 2.2 at the head for the patented Pillar Spoke Re-enforcement).
- Patented Pillar Spoke Re-enforcement, butted again just before the spoke head providing more durability in high stress area.
- Black stainless treatment.
Nipples
- Alloy square body for external adjustment and square head for easy internal adjustment/tensioning.
- 16mm length with washer for a strong connection to the spoke added durability.
- 14 gauge.
- Black anodized finish.
Tires Info
- For the 50 Carbon Disc, HUNT recommends a 25-35mm tire for best performance, tire widths between 25mm and 50mm are also safe to use. You must not exceed the maximum tire pressure limits set out in the table below or the maximum limit set by your tire manufacturer if this is lower.
- Note: best performance is usually gained by using tire pressures lower than the maximum, you can see our blog post about this.
- You must not exceed the maximum pressure stated on your tire.
- Suitable tubeless road, gravel and CX tires are available from a huge range of companies.
Axle Sizes
These wheels are available with all existing disc brake road bike axle adapter sizes. We fit the axles you need, just complete the simple form shown after checkout:
- Front: 12x100mm Thru-Axle, 15x100mm Thru-Axle, 9x100mm Thru-Axle, Quick Release 9x100mm
- Rear: 12x142mm Thru-Axle, 12x135mm Thru-Axle, 10x135mm Thru-Axle, Quick Release 9x135mm
If you are unsure what size your axles are don't worry it also includes the option to tell us your bike model and we will find out and then fit the correct axles, plus we're happy to change them later at our cost if you don't quite get it right. Please note; this form is shown after you have completed your order.
Front Hub
- Forged and CNC’d 6061-T6 heat treated aluminium alloy body.
- 7075-T6 aluminium alloy axles.
- Polished anodized black finish with laser graphics.
- Center-lock disc mount. If you require a 6 bolt adaptor you can purchase separately
Rear Hub
- HUNT H_Ratchet 36T SGL
- H_CERAMIK freehub body reinforcement coating provides excellent durability and protects against cassette sprocket damage to the freehub often seen on standard alloy freehub bodies.
- Ships with Dumonde Tech Pro X freehub grease applied for long service life and contamination resistance.
- Single 36T Ratchet Ring equals 10° engagement.
- Forged and CNC’d 6061-T6 heat treated aluminium alloy body.
- 7075-T6 aluminium alloy axles.
- Polished anodized black finish with laser graphics.
- All freehub standards accounted for.
- Center-lock disc mount. If you require a 6 bolt adaptor you can purchase separately
Bearings
- Super smooth precision bearings with proprietary waterproof grease specially selected for even the worst weather.
- Sealed cartridge replaceable units.
- Dual full-contact seals.
Warranty, HUNT Rolling Road Tests & Weight Limits
A full 3 years from purchase date warranty is offered to the original purchaser only on all Hunt bike wheels against material or workmanship defects, please click here to read full details.
Stated wheel weights: Our stated wheel weights reflect the wheelset only; without rim tape, tubeless valves or disc brake lock rings, as is industry standard. While our carbon layup processes are very precise, a 3% variance (lower or higher) in total system weight is completely normal in carbon fibre manufacturing.
All HUNT wheels models have to pass our harsh cobbled-rolling-road tests for rider weight limits, please see here for more details. Max system weight 273lbs (system weight – total weight of fully kitted up rider, bike and luggage). If a rider is over 203lbs then an experienced bike mechanic should check the wheel regularly. We are cyclists ourselves and do of course go above and beyond to offer excellent service if you ever do experience any issues. We carry full spares at very reasonable prices and offer complete support.
60 Day Ride & Return Period. We are certain you'll be impressed by the acceleration, low-weight, speed and durability of our wheels. We are cyclists and as such strive to offer class leading service and support. Buy with confidence, if for any reason you wish to return the wheels for a full refund of your order you can do so up to a full 60 days after you receive them whether they have been ridden or not. Please note we cannot offer refunds on wheels that have suffered from crash damage.
In the Box
Contents
- HUNT Black Shield tubeless rim tape fitted to wheels.
- The axle adapters needed for your bike, just fill in the simple form shown after order completion, the form is also included in your order confirmation page.
- Cassette spacer for 8/9/10 speed
- Tubeless Valves
- Spare of each spoke plus nipples
- Rotor lock rings
- Quality control card signed by your wheel builder
