DISC-SPECIFIC AND READY FOR ALL-OUT ATTACK ON THE LOCAL CRIT CIRCUITS OR TT/TRIATHLON COURSES
50/65 Deep | 27 Wide Ext | 20 Wide Int | 1532g
The Purpose
Road races, criteriums, and time trials, are being won by disc-brake bikes with increasing frequency. The shift is happening, and to keep up you'll need an aero wheelset that delivers speed in buckets. Introducing the 5065 Carbon Aero Disc.
The 50/65mm deep rims cut through the air, providing superior aerodynamic performance. The wide 27mm U-shaped profile serves up great handling and reduces drag across multiple wind yaw-angles. The 20mm internal rim bed opens out your tire profile, providing vibration reduction, grip and low rolling-resistance.

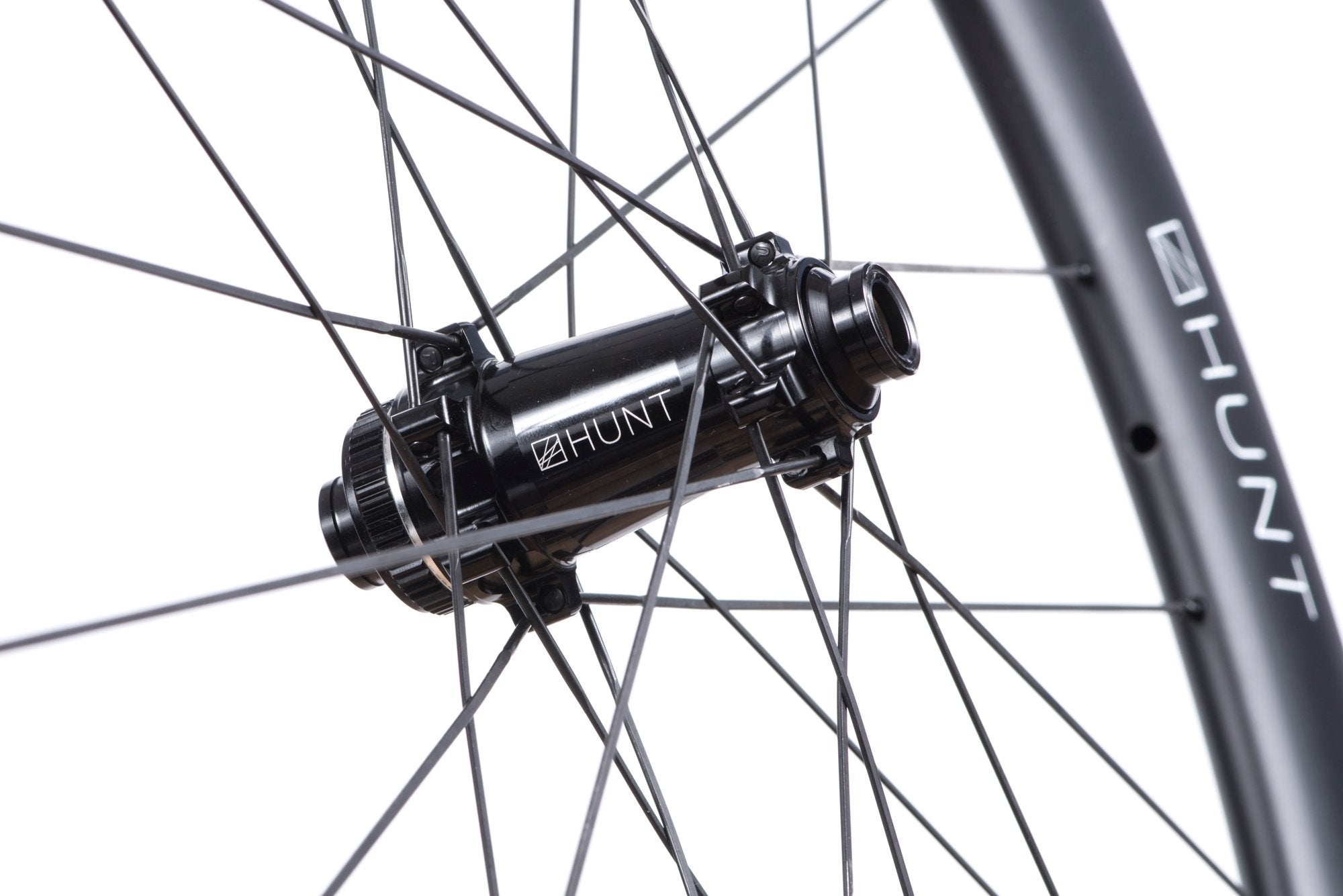

The straight pull hubs and bladed spokes reduce weight, add strength and respond instantly to your accelerations. The freehub body on the HUNT Sprint hub features 48 teeth on the ratchet ring, and treble-tooth pawls, providing 7.5° engagement. Perfect for when the hammer goes down and you need an instant response. The LU/LB bearings (which are low-friction sealed on the internal face) further reduce rolling resistance whilst maintaining excellent sealing on the exposed faces.
The Purpose
Road races, criteriums, and time trials, are being won by disc-brake bikes with increasing frequency. The shift is happening, and to keep up you'll need an aero wheelset that delivers speed in buckets. Introducing the 5065 Carbon Aero Disc.
The 50/65mm deep rims cut through the air, providing superior aerodynamic performance. The wide 27mm U-shaped profile serves up great handling and reduces drag across multiple wind yaw-angles. The 20mm internal rim bed opens out your tire profile, providing vibration reduction, grip and low rolling-resistance.
The straight pull hubs and bladed spokes reduce weight, add strength and respond instantly to your accelerations.The freehub body on the HUNT Sprint hub features 48 teeth on the ratchet ring, and treble-tooth pawls, providing 7.5° engagement. Perfect for when the hammer goes down and you need an instant response. The LU/LB bearings (which are low-friction sealed on the internal face) further reduce rolling resistance whilst maintaining excellent sealing on the exposed faces.
Key Features
The latest addition to our Carbon Aero Disc race, ready for criteriums and time trials/triathlons alike
- Rims | Features disc-specific, unidirectional T24/30 rims, offering 20mm internal and 27mm external widths, and a 50/65mm u-shape aero profile.
- Tires | Tubeless-ready for lower weight and rolling resistance, featuring H-Lock technology for easy and secure tubeless installation. Also works excellently with clincher tires and tubes.
- Hubs | Race Season SPRINT straight-pull hubs, boasting an engagement rate of just 7.5 degrees owing to the leaf-sprung, multi-point pawls and 48 ratchets in the hub shell.
- Spokes | Pillar PSR reinforced bladed spokes.
- Axles | Easily adaptable & we fit them for you. Fit all current axle sizes and are easy to change; Front - QR, Bolt thru 12/9mm, Rear - QR, Bolt thru 12x142, 12x135, 10x135.
- Weight | 1532g
Please note: If you require a 6 bolt adaptor you can purchase separately
The Experts' View
Full Specs
Rims
- Disc-specific tubeless-ready profile
- H_Lock bead-seat up-kicks, for easy and secure tubeless installation
- Unidirectional T24/30 carbon fibre with 3K weave re-enforced spoke holes
- 27mm outer and 20mm inner width
- 50/65mm depth
- Matt black, finished with matt white contrasting graphics.
Spokes
- 20 front and 24 rear, laced 2-cross.
- Aero Butted 2.0-2.2/0.95-2.0 then PSR section is 2.2.
- Straight-pull, for excellent torsional strength and direct power transfer
- Cold drawn from high grade T302 (18/10) stainless steel wire by Sandvik Sweden
- Patented Pillar Spoke Re-enforcement (butted again just before the spoke head, providing more durability in high stress area).
- Black stainless finish.
Nipples
- Alloy square body for external adjustment and square head for easy internal adjustment/tensioning.
- 16mm length with washer for a strong connection to the spoke added durability.
- 14 gauge.
- Black anodized finish.
Tires Info
- Click here to listen to a podcast exploring the science of why lower pressures were found to be faster by pro teams.
- Maximum tire pressures for other tire sizes: 30mm - 32mm do not exceed 70psi, 33mm do not exceed 50psi, 35-45mm do not exceed 45psi, 45-50mm do not exceed 40psi.
- Please do not exceed the maximum pressure stated on your tyi.
- Suitable for tires from 23mm up to 50mm wide.
- Suitable tubeless road, gravel and CX tires are available from a huge range of companies.
Axle Size
- These wheels are available with all existing disc brake road bike axle adapter sizes. All our axle adapters are easy to swap but we'll fit the adapters your bike needs to save you the work. After your order checkout is completed a simple form will show, as well as being sent to you in your confirmation email. The form allows you to select the axle size your bike needs, don't worry it also includes the option to tell us your bike model and we will find out and then fit the correct axles, plus we're happy to change them later at our cost if you don't quite get it right. Please note; this form is shown after you have completed your order. Please click on the Front Hub and Rear Hub tabs to see which sizes are available.
Front Hub
- We fit the axles you need, just complete the simple form shown after checkout:
- All existing road/CX disc front axle standards are available including:
- Quick Release (Quick release skewers included)
- 12mm Bolt Thru
- 9mm Bolt Thru (uncommon)
- All axle adapters are also available separately.
- Forged and CNC’d 6061-T6 heat treated aluminium alloy body.
- 7075-T6 aluminium alloy axles.
- Polished anodized black finish with laser graphics.
- Centre-lock disc mount. If you require a 6 bolt adaptor you can purchase separately here
Rear Hub
- We fit the axles you need, just complete the simple form shown after checkout.
- All existing road/CX disc rear axle standards are available including:
- Quick Release (Quick release skewers included)
- 12x142 Bolt Thru
- 12x135 Bolt Thru (uncommon)
- 10x135 Bolt Thru (uncommon)
- All axle adapters are also available separately.
- 7075-T6 heat-treated aluminium alloy freehub body.
- Steel Spline Insert freehub body reinforcement provides excellent durability against cassette sprocket damage to the freehub often seen on standard alloy freehub bodies.
- 3x treble-tooth individually leaf sprung pawls with 48 teeth on the ratchet ring for fast 7.5 degree engagement and instant acceleration.
- All freehub standards accounted for, including:
- Shimano/SRAM
- Campagnolo
- SRAM XD Driver
- SRAM XDR Driver
- Hunt Race Season Disc straight-pull super-light alloy.
- Forged and CNC’d 6061-T6 heat treated aluminium alloy body.
- 7075-T6 aluminium alloy axles.
- Centre-lock disc mount. If you require a 6 bolt adaptor you can purchase separately here
- Polished anodized black finish with laser graphics.
Bearings
- High-grade Japanese EZO bearings.
- Rear hub upgraded to even faster rolling LU/LB low-friction sealed internal face, dual sealed external face bearings.
- Incredibly fast rolling.
Warranty, HUNT Rolling Road Tests & Weight Limits
A full 3 years from purchase date warranty is offered to the original purchaser only on all Hunt bike wheels against material or workmanship defects, please click here to read full details.
All HUNT wheels models have to pass our harsh cobbled-rolling-road tests for rider weight limits, please see here for more details. 220lbs is the upper recommended rider weight limit for these wheels. Please include the weight of any luggage in your total rider weight when choosing the correct wheels. If a rider is over 172lbs then an experienced bike mechanic should check the wheel regularly and it is advisable to use tyres at max 90psi as this will reduce the fatigue on the wheelset. We are cyclists ourselves and do of course go above and beyond to offer excellent service if you ever do experience any issues. We carry full spares at very reasonable prices and offer complete support.
60 Day Ride & Return Period. We are certain you'll be impressed by the acceleration, low-weight, speed and durability of our wheels. We are cyclists and as such strive to offer class leading service and support. Buy with confidence, if for any reason you wish to return the wheels for a full refund of your order you can do so up to a full 60 days after you receive them whether they have been ridden or not. Please note we cannot offer refunds on wheels that have suffered from crash damage but do offer a crash replacement discount.
Tubeless Tire Fitting Options
These are only some of the options you can purchase with your wheels. To see the full range, click here
 | Schwalbe Pro One Tubeless TiresThe Schwalbe Tubeless road tires consistently win plaudits from journalists and customers alike. We have been testing them for a long time and have been very impressed. The One Pro's are Schwalbe's top of the range tires and feature their triple compound tread so you get extremely low rolling-resistance combined with excellent grip and durability. |
 | Schwalbe G One Speed Tubeless Tires - 30mmUnleashing profile and breathtakingly fast - especially when large volume counts. As a 30mm wide road race version with V-Guard, G-One Speed is a tyre for the real tough jobs. You can ride it as a handmade tubular or with the most modern tubeless easy technology. But it is also a guarantee for maximum speed in the extra-wide 60mm execution - of course, not only at the fascinating beach races on Holland’s coasts. The new G-One Speed is an evolution of the former S-One and Big One. |
Reviews
Bike Magazine and Website Experts' Views
 | 9/10 BEST VALUE AWARD"To sum up, these wheels match the performance of hoops almost twice the price - highly recommended." See full review in the gallery above. |
 | 9/10 REVIEW"It’s hard to find a road disc wheelset that can compete with Hunt Bike Wheels 30Carbon Aero Disc wheelset on every front. This is one upgrade that road disc bike owners cannot afford to overlook." |
 | 4/5 HIGHLY COMMENDED AWARD"It's deep enough to provide an aero benefit without creating so much surface area that it could get blown around in the wind, and the U-profile helps to ensure stability in crosswinds." |
 | Their low weight is evident in acceleration and while climbing"Powering along the flats they are comfortable and don't hold you back... a level of confidence that will put your best times on notice." |
 | FIRST LOOKFirst look at the HUNT Carbon Disc wheels and video discussing carbon disc brake rim technology |
